Hello fellow fraters... I did this because I know many of you would like to know how to do such work with GS... Well here goes...
Note that this isn't the definitive way on how to sculpt these robes; this is just how I do it...

In order to better understand the tutorial, here's a legend:

#. caption for picture of the same # picture above

* tips





Posted Image


1. The tools I used:
a. sculpting tool of some sort (actually, I don't know what that is, I just use it to
sculpt) - main tool with which I sculpt... It's the red and white one
b. x-acto knife or hobby knife - to cut straight edges
c. petroleum jelly - lubricant... Its the shiny stuff
d. GS of course - no explanation needed

* remember to keep your fingers and tools wet with petroleum jelly throughout the whole process...


2. The complete model to be robed and a small amount of GS enough for the front chest... Notice that I took out the skull on the chest as it will get in the way later on if I didn't.. Also, make sure that the model you have is at this stage in the building process; most importantly the legs... If the legs have been repositioned, do the GS ribbing before doing the robes...
The arms (with shoulder pads already) may or may not be glued if using single handed weapons or if the arms won't press against the chest.. If you do glue them, use super glue so it would be easy to remove later on... Well talk about why in a little while...
If the arms will press against the chest, then you must not clue them yet... Better yet, don't add robes to models with arms pressed against the chest..

* When applying robes to a model, do not attach the base so that you would have easier access to the loincloth later on...


First, the torso area....


3. Apply the GS evenly on chest... Get an even coverage... It doesn't have to be very smoth yet as it won't matter...


4-6. You can now add the folds as you see fit... I drag the sculpting tool to make the long folds, while the smaller ones I just press the tool into the GS... I drag the tool multiple times to make the "walls" of the fold smooth... I also like to keep the folds a bit sharp and angular to be more akin with GW sculpts...

* Use GW as rough reference on where to place the folds...


Posted Image

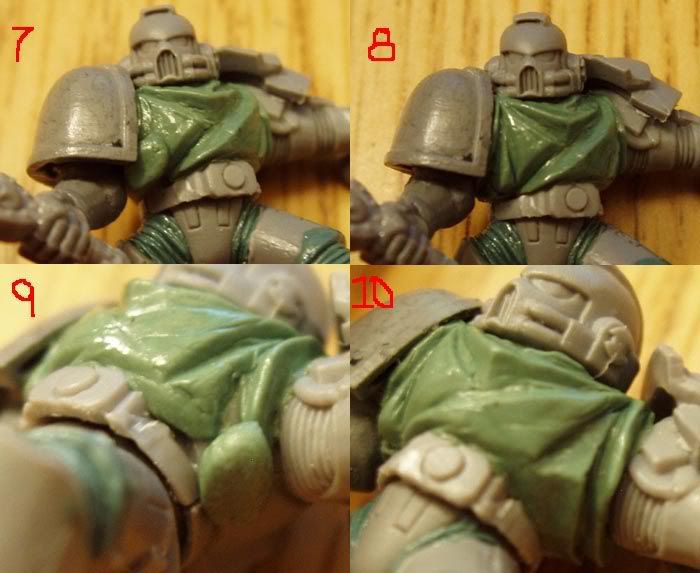

7&9. Add GS balls to places without GS yet....

* Don't apply too much GS at one time... Be patient and take your time...


8&10. Flatten and spread the GS with your sculpting tool and blend it with the GS on the model already... Add more folds... If you dont have the arms on, keep the GS out of the area where the arms go on.. It's the round raised part on the side if you didn't know... If you have the arms glued, then make sure the GS gets as close to the armpits as possible...

* Drag the tool to blend it with surrounding GS


Posted Image


11&13. Pretty much the same as 7&9..


12&14. Same as 8&10...
If the arms and shoulder pads (those with single handed weapons) haven't been clued yet, dry fit them wth a little petroleum jelly by pressing them in the pose they will be glued in while the GS isn't cured yet to make sure they fit later... With bolter wielders, as much as possible don't let them touch the chest... Remove the arms and let the GS cure...



That concludes the torso area... Next up, the hood...

Posted Image


1. A bit of flattened GS...

* When flattening GS, do so on an area which is lubricated well so that it won't stick and thus you will be able to apply to the model...
Let the GS cure a bit before moving on..

2. Make it more rectangular.. The long side shouldn't be too long; approximately 3 times the height of the head you are covering... the shorter sides shoud be about 1.5 times the length of the head.. Cut one long side and both short sides so that you have a straight edge..


3. Drape the GS over the head..


4. Rip-off the arms if glued.. Tuck in one side of the hood as shown with your sculpting tool...

* This is why the arms shouldn't be attached as they get in the way of the tucking process... Well actually just the shoulder pads, but you need those on the arms when the arms are glued so that the GS doesn't get in the wayand everything fits nicely...


Posted Image


5. Tuck in the other side.. Start shaping the hood... you can have th top rounded, angled or pointed... I make mine angled kinda like the SOBs...


6-7. Fold the rear edge in on itself and then smoothen... You will notice that the collar will get in the way... I like to just get the GS over it... You may also want to cut it off altogether..


8. Add folds like before.. Now you can glue the arms back on so that you can adjust the hood for the shoulder pads.. Once satisfied, let cure...



That's the hood... Lastly, the loincloth...


Posted Image


1. Well start off like the hood... You can also make it slightly tapered at the top...


2. Apply between the legs with the tapered edge touching the belt as shown...


3-4. Shape the loincloth slightly..

* I like to keep one side touching a leg so that shaping wont be too hard...


Posted Image


5. Continue shaping and add folds until satisfied and then let cure...


6. Add a sausage of GS over a fold...


7. Blend one side of the sausage to the loincloth making it flat....


8. Blend the other side as in #7 making the very top of the fold edged...



The finished product without extra details

Posted Image


The finished conversion

Posted Image
Posted Image
Posted Image
Posted Image
[IMG]


Well there you have it... Marshal Barbarossa's way of making robes... Hope this helps all of you aspiring sculptors...

Enjoy!


Marshal Barbarossa

#2
StrayCatt

StrayCatt

    ++ ERRATUS FELES ++

  • ++ MODERATI CEDO ++
  • 945 posts
I will leave this open for the next day or so in case there are any questions. After that it shall be headed for the archive.

A great little tutorial BTW.

-Adam

#3
morac

morac

    +FRATER DOMUS+

  • + FRATER DOMUS +
  • 71 posts
:wub: Thats awesome!

I'm very glad you did this (help with gs is always welcome)

jeez, you make it look so easy...... ;)

morac
The Sons Of The Eclipse
Wip DIY Chapter
Yay! the link works!

View My Minis!

#4
Marshal Barbarossa

Marshal Barbarossa

    +FRATER DOMUS+

  • + FRATER DOMUS +
  • 343 posts
Oh by the way, I'll post the finished model later on when I well, finish it...


Marshal Barbarossa

#5
LordXaras

LordXaras

    +FRATER DOMUS+

  • + FRATER DOMUS +
  • 398 posts
Yay! :wub:
This is one for the favourites!

Many thanks to you.

#6
Kenzington

Kenzington

    +FRATER DOMUS+

  • + FRATER DOMUS +
  • 259 posts
Very cool, now I know how I want to do my Chaos Chosen squad. Great tutorial! Thanks for sharing!
"There are no wolves on Fenris."

#7
Greyfen

Greyfen

    +FRATER DOMUS+

  • + FRATER DOMUS +
  • 182 posts
Thanks Marshal, thats a really nice tutorial... I may have to try that :wub:
Greyfen

#8
Icarus the Great

Icarus the Great

    +FRATER DOMUS+

  • + FRATER DOMUS +
  • 467 posts
Can we get a pic of the whole model? From what I see it looks awesome!

#9
SFLegend

SFLegend

    +FRATER DOMUS+

  • + FRATER DOMUS +
  • 37 posts
Thank you very much for the tutorial, marshal.

*Reaches for green stuff and a freshly built model*

And, lest I forget; :wub:

#10
lieutenant L

lieutenant L

    +FRATER DOMUS+

  • + FRATER DOMUS +
  • 1,373 posts
wow this is great, thanks for posting this

thanks
L
To whom it may concern

#11
Master Toddius

Master Toddius

    +FRATER DOMUS+

  • + FRATER DOMUS +
  • 4,454 posts
Awesome Tutorial Sir. Thanks for taking the time. I like the fact that you achieved most of the cloth-like effect by simulating the actual flat cloth in GS and then applying it to the model and smartly molding it into place. Great technique.

Much respect---

-----T O D D I U S

gallery_317_1465_4319.jpggallery_317_1465_1491.jpggallery_317_1465_191827.gifgallery_317_1465_448.jpggallery_317_1465_3238.jpg


#12
LameBear

LameBear

    +FRATER DOMUS+

  • + FRATER DOMUS +
  • 81 posts
Marshal, your my hero :wub:.
I will steal that for my DarkAngels ^^.

Thx alot!

LameBear

#13
Aquilla

Aquilla

    +FRATER DOMUS+

  • + FRATER DOMUS +
  • 730 posts
Lovely tutorial Marshall Barbarossa!

And thanks to Straycatt for deciding to put this in the archive,

Just what I needed!

:wub:
If its a model, I build it, If it isnt I take it apart!

Every act of creation is first of all an act of destruction. -Pablo Picasso

#14
Brother_Platypus

Brother_Platypus

    +FRATER DOMUS+

  • + FRATER DOMUS +
  • 20 posts
in the name of Gulliman i'm going to modify this method to accamodate the toga

#15
RayGun924

RayGun924

    +FRATER DOMUS+

  • + FRATER DOMUS +
  • 796 posts
Very excellent tutorial Marshal B.

~Ray

Edited by RayGun924, 04 March 2005 - 10:09 PM.


#16
longlivemarneus

longlivemarneus

    +FRATER DOMUS+

  • + FRATER DOMUS +
  • 1,957 posts
excellent! this couldnt have come at a better time. great tutorial man!

-LLM
IPB Image

#17
Stitch-Rocks-My-World

Stitch-Rocks-My-World

    +FRATER DOMUS+

  • + FRATER DOMUS +
  • 118 posts
..And i break my year long silence :wub:

To say..

Thank you..

Just what i was looking for!

;)

#18
CatchDude

CatchDude

    +FRATER DOMUS+

  • + FRATER DOMUS +
  • 386 posts
Oooh! Just what I needed! Thanks!

#19
brother_gabriel

brother_gabriel

    +FRATER DOMUS+

  • + FRATER DOMUS +
  • 1,377 posts
great tutorial. thanks :wub: .
wohay, I exist. :| noodlenerd.deivantart.com

#20
Marshal Barbarossa

Marshal Barbarossa

    +FRATER DOMUS+

  • + FRATER DOMUS +
  • 343 posts
Im glad you guys like it... Im happy to return what I can to the B&C community after what I have learned here...

As for the full marine, well, I don't have the camera right now so I can't take pics... In a couple more hours...

Good luck fellas...



Thanks and happy converting!

Marshal Barbarossa

#21
Son_of_Guilliman

Son_of_Guilliman

    +FRATER DOMUS+

  • + FRATER DOMUS +
  • 380 posts
if not already... make this a sticky? so it doesnt dissapear..
Owns:
Ultramarines +11400 pts
CSM - Khorn +3333 pts
IG - Cadian +3500 pts
Necrons +2800 pts
Orks +1100 pts
---m(^0^)m---

#22
Sword Brother Jeramakus

Sword Brother Jeramakus

    ++ LUNA EQUESTER ++

  • ++ MODERATI CEDO ++
  • 7,294 posts
:D :tu:
Posted Image

#23
Soldat

Soldat

    +FRATER DOMUS+

  • + FRATER DOMUS +
  • 187 posts
Wow thanks for that! it's awesome, you seriously are a legend!

#24
benno_wallace

benno_wallace

    +FRATER DOMUS+

  • + FRATER DOMUS +
  • 419 posts
Thank You. I read ur tute and went and gave it a go and it is unbelievably easy. I have very little skill with GS and I managed to do a great hooded cloak and then I decided to try a talbard on a WIP Vet Sgt and I even altered ur ideas and I went as far as making it tattered and battle worn. Thanks again




No matter where you go in life you'll always be there... hope that helps

#25
Newt-Kabob

Newt-Kabob

    +FRATER DOMUS+

  • + FRATER DOMUS +
  • 30 posts
Fantastic and easy to follow!
Thanks for taking the time to show us your techniques!
